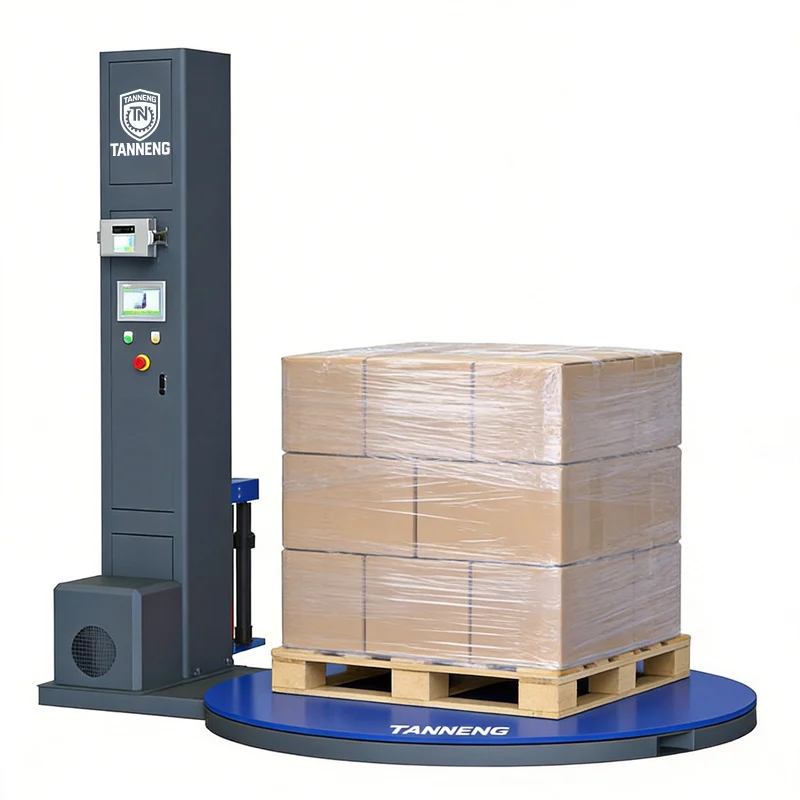

Weighing-Type Wrapping Machine

Product Description:

·Wrapping and weighing are completed in one step, with packaging and delivery taking place in a single process

·Weighing while wrapping saves the separate weighing process, doubling efficiency

·Save labor, space, and time, with more efficient logistics and shipping

Inquire Now

WhatsApp

Features:

Nationwide joint guarantee
Worry-free shopping
Lifetime maintenance

Detailed Description

The TANNENG weighing-type wrapping machine integrates a weighing module with automatic wrapping functionality, enabling packaging and weighing to be completed simultaneously without requiring secondary handling to obtain cargo weight data. The equipment utilizes PLC intelligent control, variable frequency speed regulation, and a pre-stretched film frame, allowing for free adjustment of film tension, wrapping layers, and packaging height. Coupled with a photoelectric automatic height measurement and stable top pressing device, it effectively prevents cargo from toppling and scattering. The entire machine operates smoothly, is easy to operate, and provides accurate and traceable weighing data. It also offers packaging effects such as moisture resistance, dust prevention, and cargo stabilization, making it widely applicable to industries requiring simultaneous metering and wrapping, such as logistics warehousing, food, chemical, and building materials. This significantly enhances the efficiency of integrated packaging and weighing operations.

Specifications:

1650 Weighing-Type Wrapping Machine – Turntable Diameter 1.65 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

1800 Weighing-Type Wrapping Machine – Turntable Diameter 1.8 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

2000 Weighing-Type Wrapping Machine – Turntable Diameter 2 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

Category	Standard Wrapping Machine
Packing efficiency	20-40 trays/hour
Control system	Siemens
Low Voltage Apparatus	Schneider
Electric machinery	Tai Li / Wan Xin
Pallet weight	Max 2000kg
Frequency converter	Siemens
Photoelectric switch	Banner
Machine size	24801650/1800/20003270mm

FAQ:

Why does stretch film easily break when wrapping?

There are three common reasons: (1) the tension of the stretch film is set too high; (2) the film is thin, brittle, or damaged; (3) the film carriage or roller is stuck, causing uneven force. The solutions are to appropriately reduce the tension, use high-quality stretch film, and clean the guide rollers.
What should I do if the goods in the package are loose?

(1) Increase the stretch ratio of the film to achieve tighter packaging; (2) Slow down the hoist speed of the rack to improve film overlap; (3) Check if the pre-stretch mechanism is working properly without slipping; (4) Wrap 2–3 more layers at the bottom of the goods to better secure them.
Why does the turntable not rotate or run slowly after starting?

First, check whether the emergency stop button has been reset and whether the inverter parameters have been incorrectly adjusted. Then check if the chain or belt is loose or slipping, and whether the motor is abnormal. Low-speed force is usually caused by a low inverter current setting or the brake not being released; readjust the parameters to correct it.
How to deal with increased noise after long-term use?

The main reasons are insufficient lubrication or loose parts. (1) Lubricate the turntable bearings, chains, and gears; (2) Tighten loose screws, film holders, and covers; (3) Clean debris under the turntable to avoid friction noise. Regular maintenance can greatly reduce noise.
