Standard Wrapping Machine with Top Press

Product Description:

·Top pressing and securing, ensuring high, light, and bulk goods do not collapse or tip over

·Pre-stretch technology, reducing packaging costs

·Fully automatic one-key wrapping, efficiency far exceeds manual operation

·Lifting top press with soft start, operates smoothly without damaging goods

·Thickened machine body for stability and durability, suitable for pallet packaging across multiple industries

Inquire Now

WhatsApp

Features:

Nationwide joint guarantee
Worry-free shopping
Lifetime maintenance

Detailed Description

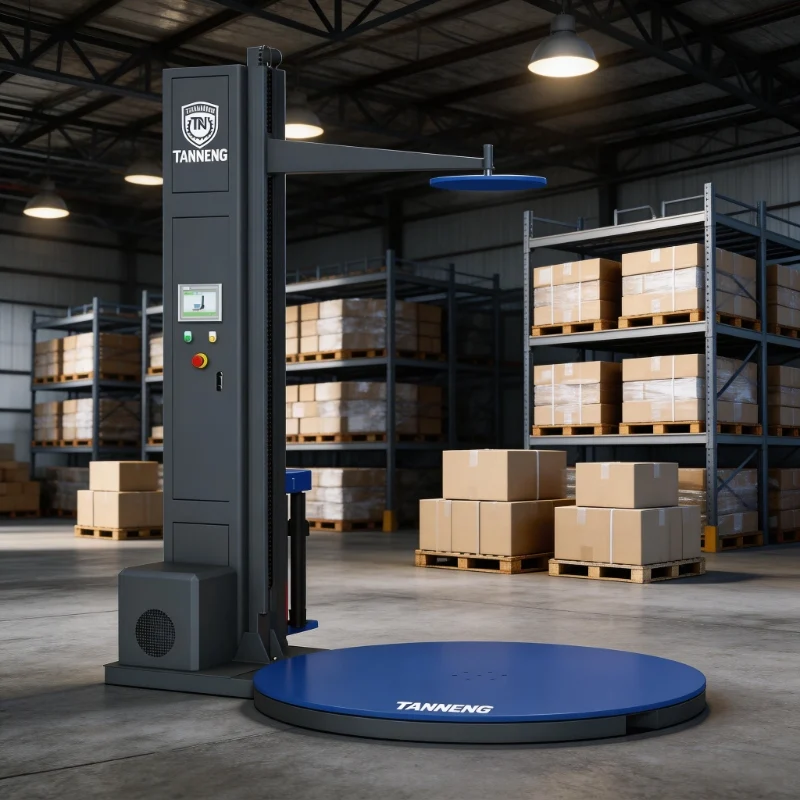

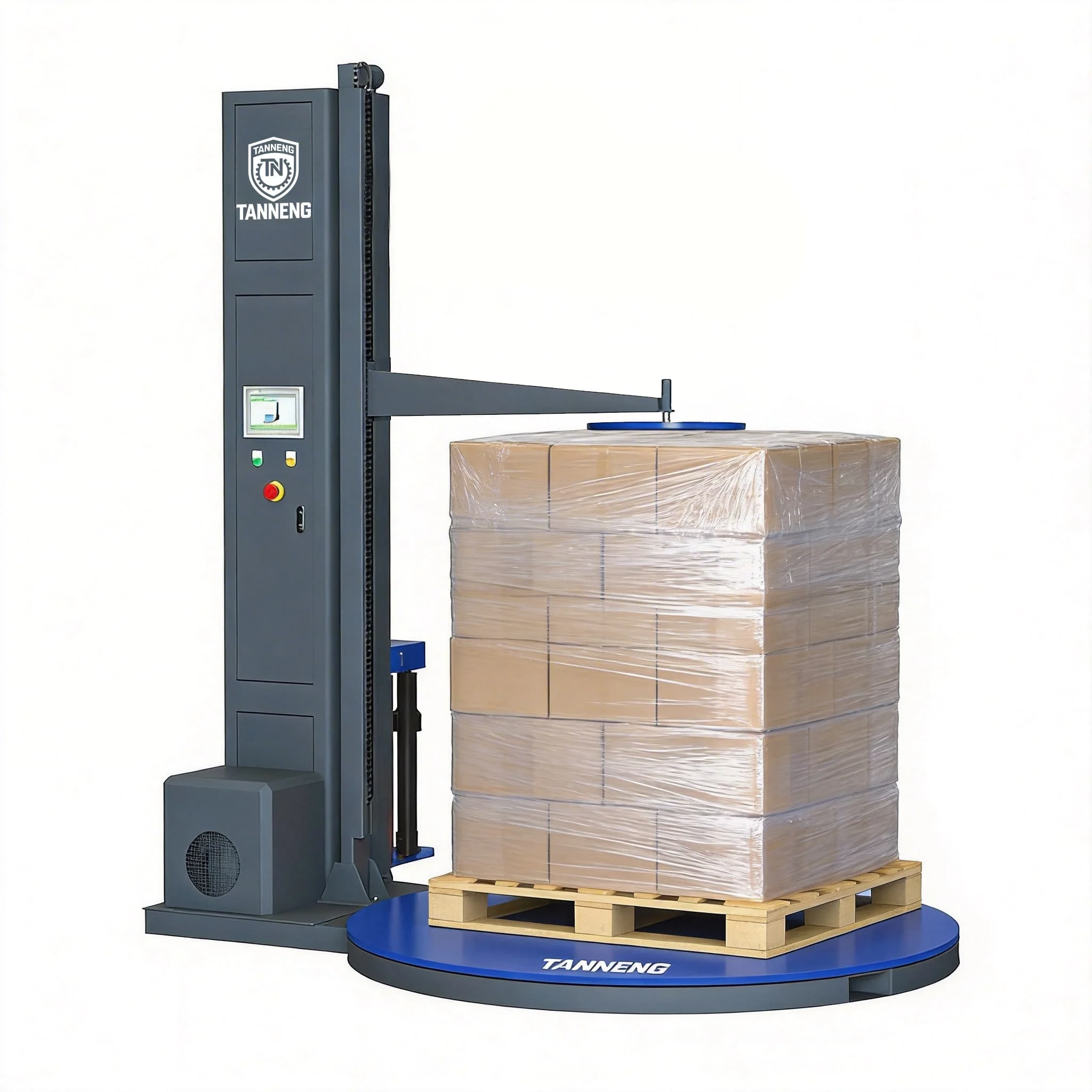

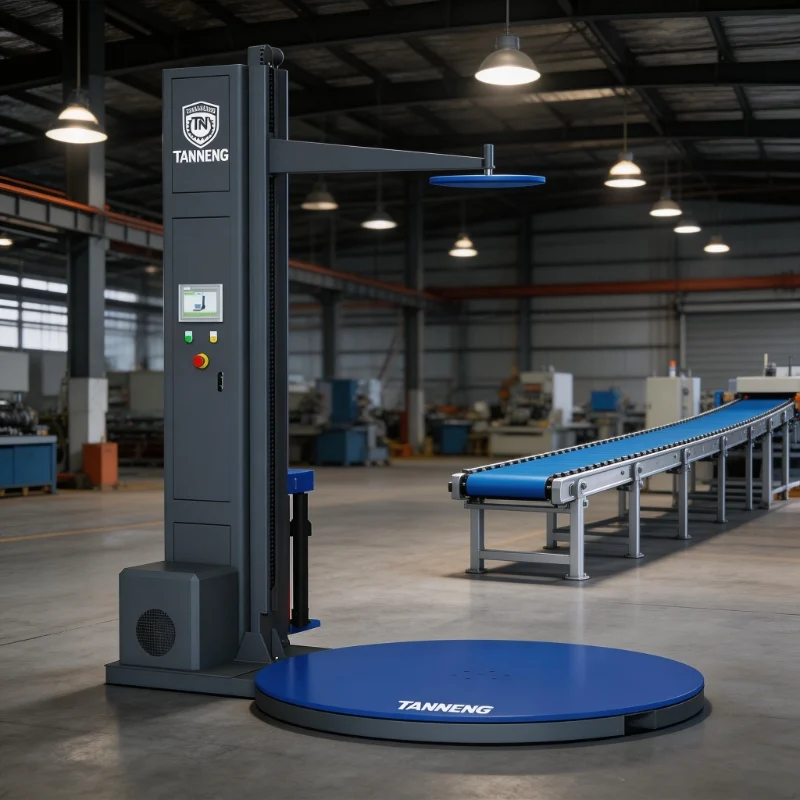

The TANNENG standard wrapping machine with top press is specially designed for high stacks, lightweight, and easily toppling goods. It is equipped with a liftable electric top-press device that stabilizes and presses the top of the goods during wrapping, effectively preventing tilting and collapsing. The equipment uses PLC intelligent control and a pre-stretch film carriage, automatically sensing the height of the goods, completing wrapping with one button. The packaging is tight and uniform, dustproof and moisture-proof, widely used in industries such as food, chemicals, hardware, and foreign trade logistics, significantly improving packaging efficiency and transportation safety.

Specifications:

1650 Standard Wrapping Machine with Top Press – Turntable Diameter 1.65 meters – Wrapping Height 1.7/2.2/2.5 meters – Turntable Load Capacity 2 tons (Customizable)

1800 Standard Wrapping Machine with Top Press – Turntable Diameter 1.8 meters – Wrapping Height 1.7/2.2/2.5 meters – Turntable Load Capacity 2 tons (Customizable)

2000 Standard Wrapping Machine with Top Press – Turntable Diameter 2 meters – Wrapping Height 1.7/2.2/2.5 meters – Turntable Load Capacity 2 tons (Customizable)

Category	Standard Wrapping Machine
Packing efficiency	20-40 trays/hour
Control system	Siemens
Low Voltage Apparatus	Schneider
Electric machinery	Tai Li / Wan Xin
Pallet weight	Max 2000kg
Frequency converter	Siemens
Photoelectric switch	Banner
Machine size	24801650/1800/20003270mm

FAQ:

Why does stretch film easily break when wrapping?

There are three common reasons: (1) the tension of the stretch film is set too high; (2) the film is thin, brittle, or damaged; (3) the film carriage or roller is stuck, causing uneven force. The solutions are to appropriately reduce the tension, use high-quality stretch film, and clean the guide rollers.
What should I do if the goods in the package are loose?

(1) Increase the stretch ratio of the film to achieve tighter packaging; (2) Slow down the hoist speed of the rack to improve film overlap; (3) Check if the pre-stretch mechanism is working properly without slipping; (4) Wrap 2–3 more layers at the bottom of the goods to better secure them.
Why does the turntable not rotate or run slowly after starting?

First, check whether the emergency stop button has been reset and whether the inverter parameters have been incorrectly adjusted. Then check if the chain or belt is loose or slipping, and whether the motor is abnormal. Low-speed force is usually caused by a low inverter current setting or the brake not being released; readjust the parameters to correct it.
How to deal with increased noise after long-term use?

The main reasons are insufficient lubrication or loose parts. (1) Lubricate the turntable bearings, chains, and gears; (2) Tighten loose screws, film holders, and covers; (3) Clean debris under the turntable to avoid friction noise. Regular maintenance can greatly reduce noise.
