M-Type Wrapping Machine

Product Description:

·M-shaped groove design, forklifts can enter and exit directly without a ramp.

·No need to load or unload pallets; after packaging, it can be forklifted away, doubling efficiency.

·No dead corners at the bottom, tightly wrapped at the base, more secure, no loose packages or pallet slippage.

·Saves space and labor, suitable for high-frequency shipping scenarios.

·Operates stably, compatible with various standard pallets, highly versatile.

Inquire Now

WhatsApp

Features:

Nationwide joint guarantee
Worry-free shopping
Lifetime maintenance

Detailed Description

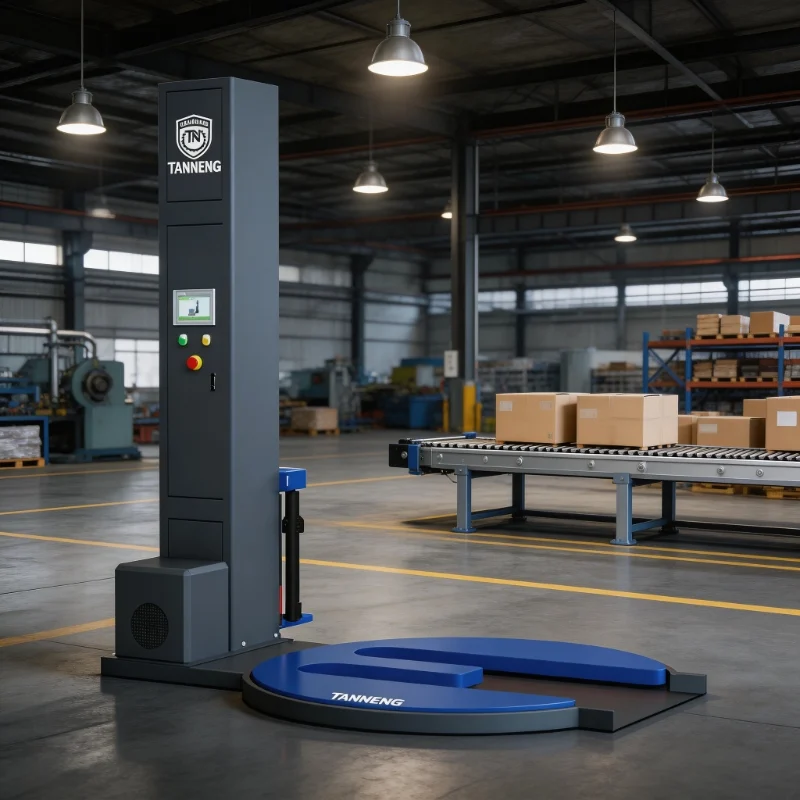

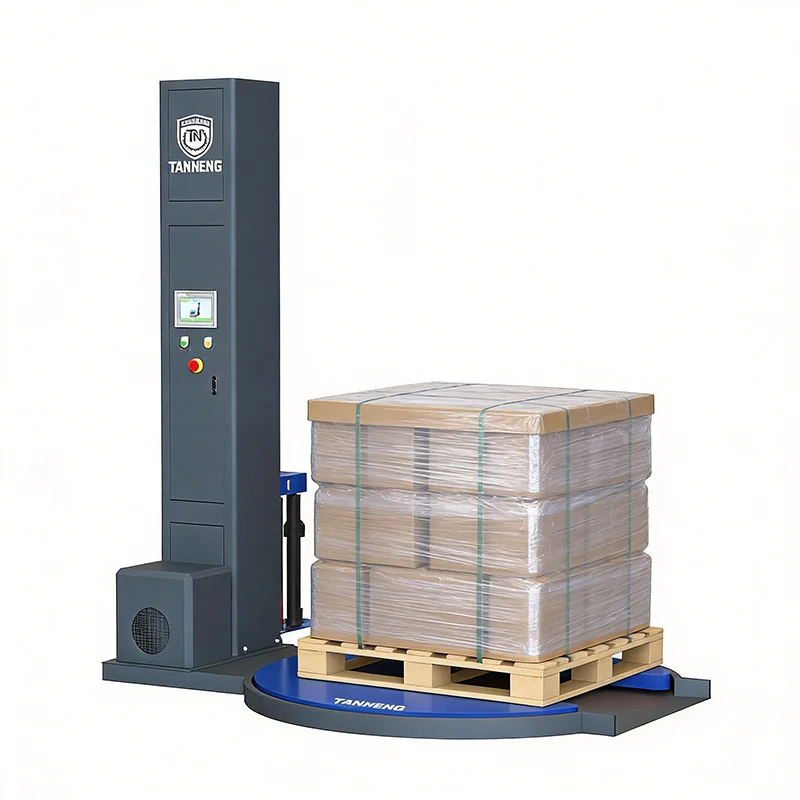

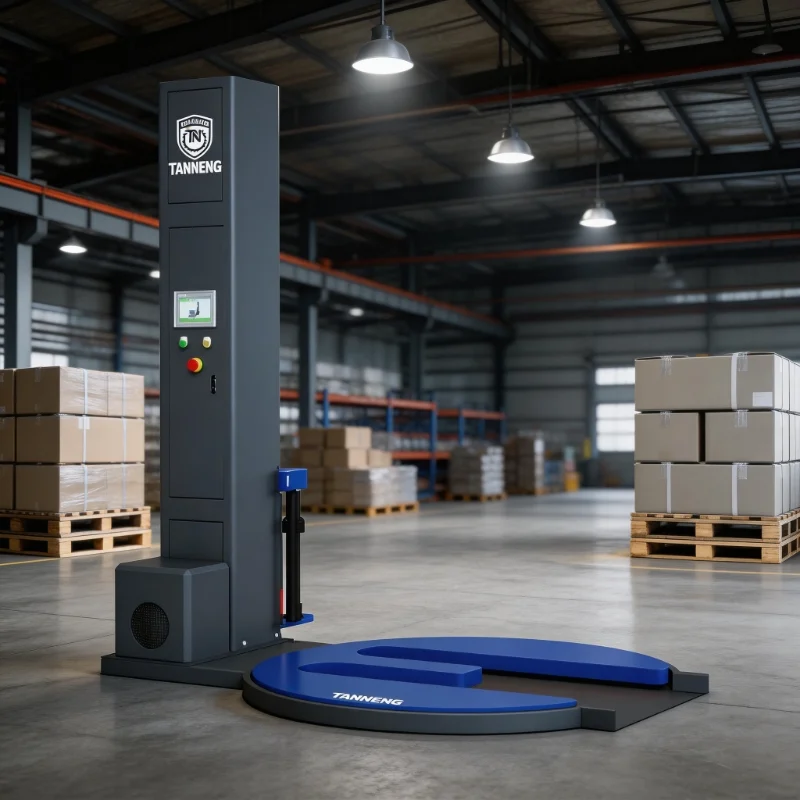

The TANNENG M-type wrapping machine uses an M-type chassis structure, specifically designed for goods with irregular bottoms, special fork slots, or requiring double-sided forklift access. It allows forklifts to operate directly without the need for secondary manual handling. The equipment runs stably, wraps evenly, and provides firm packaging that is both dustproof and moisture-proof. It is suitable for construction materials, pipes, boards, heavy goods, and other scenarios, effectively improving logistics and warehouse packaging efficiency and safety.

Specifications:

1650 M-Type Wrapping Machine – Turntable Diameter 1.65 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 1 ton (Customizable)

1800 M-Type Wrapping Machine – Turntable Diameter 1.8 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 1 ton (Customizable)

2000 M-Type Wrapping Machine – Turntable Diameter 2 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 1 ton (Customizable)

Category	Standard Wrapping Machine
Packing efficiency	20-40 trays/hour
Control system	Siemens
Low Voltage Apparatus	Schneider
Electric machinery	Tai Li / Wan Xin
Pallet weight	Max 1000kg
Frequency converter	Siemens
Photoelectric switch	Banner
Machine size	24801650/1800/20003270mm

FAQ:

Why does stretch film easily break when wrapping?

There are three common reasons: (1) the tension of the stretch film is set too high; (2) the film is thin, brittle, or damaged; (3) the film carriage or roller is stuck, causing uneven force. The solutions are to appropriately reduce the tension, use high-quality stretch film, and clean the guide rollers.
What should I do if the goods in the package are loose?

(1) Increase the stretch ratio of the film to achieve tighter packaging; (2) Slow down the hoist speed of the rack to improve film overlap; (3) Check if the pre-stretch mechanism is working properly without slipping; (4) Wrap 2–3 more layers at the bottom of the goods to better secure them.
Why does the turntable not rotate or run slowly after starting?

First, check whether the emergency stop button has been reset and whether the inverter parameters have been incorrectly adjusted. Then check if the chain or belt is loose or slipping, and whether the motor is abnormal. Low-speed force is usually caused by a low inverter current setting or the brake not being released; readjust the parameters to correct it.
How to deal with increased noise after long-term use?

The main reasons are insufficient lubrication or loose parts. (1) Lubricate the turntable bearings, chains, and gears; (2) Tighten loose screws, film holders, and covers; (3) Clean debris under the turntable to avoid friction noise. Regular maintenance can greatly reduce noise.
