M-Type Wrapping Machine with Top Press

Product Description:

·M-type chassis + dual-function of pressing and top loading, allowing for straight-in and straight-out forklift operations, ensuring high-level goods remain upright and do not collapse

·Fully wrapped at the bottom + compressed at the top, with double reinforcement, and shipped in a loose pallet

·No need for ramps, forklifts can be plugged in and packed immediately, significantly improving efficiency

·Intelligent pre-stretching saves film, labor, space, and brings peace of mind

·The variable frequency system operates smoothly, without causing damage to goods, making it suitable for heavy-duty packaging across multiple industries

Inquire Now

WhatsApp

Features:

Nationwide joint guarantee
Worry-free shopping
Lifetime maintenance

Detailed Description

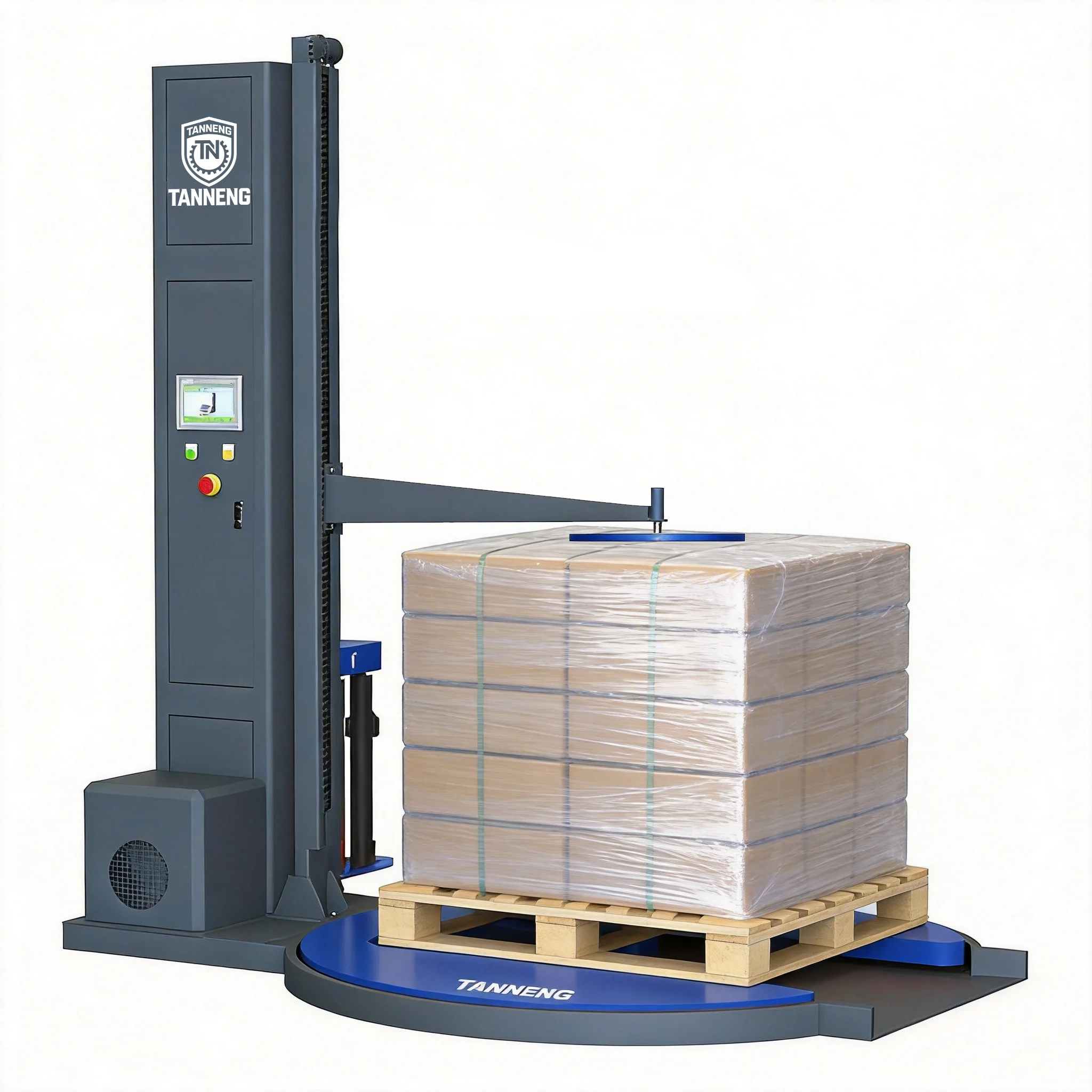

The TANNENG M-type wrapping machine with top press is designed for efficient loading with manual forklifts. The turntable features M-type forklift slots, allowing pallets to be pushed in directly without a ramp. Paired with an electric top-press device, it can apply stable pressure to secure the top of the goods, preventing scattering and tipping. The machine uses PLC intelligent control + variable frequency speed regulation, automatic height detection via photoelectric sensors, a pre-stretch film carriage, and allows independent setting of top/bottom wrapping layers, over-top time, and film tension. It can complete wrapping automatically with one button, running smoothly and operating conveniently. It is suitable for palletized goods in industries such as hardware, electronics, food, and logistics, especially ideal for light/medium loads and frequent manual forklift operations, combining efficiency, safety, and film-saving advantages.

Specifications:

1650 M-Type Wrapping Machine with Top Press – Turntable Diameter 1.65 meters – Wrapping Height 1.7/2.2/2.5 meters – Turntable Load Capacity 1 ton (Customizable)

1800 M-Type Wrapping Machine with Top Press – Turntable Diameter 1.8 meters – Wrapping Height 1.7/2.2/2.5 meters – Turntable Load Capacity 1 ton (Customizable)

2000 M-Type Wrapping Machine with Top Press – Turntable Diameter 2 meters – Wrapping Height 1.7/2.2/2.5 meters – Turntable Load Capacity 1 ton (Customizable)

Category	Standard Wrapping Machine
Packing efficiency	20-40 trays/hour
Control system	Siemens
Low Voltage Apparatus	Schneider
Electric machinery	Tai Li / Wan Xin
Pallet weight	Max 1000kg
Frequency converter	Siemens
Photoelectric switch	Banner
Machine size	24801650/1800/20003270mm

FAQ:

Why does stretch film easily break when wrapping?

There are three common reasons: (1) the tension of the stretch film is set too high; (2) the film is thin, brittle, or damaged; (3) the film carriage or roller is stuck, causing uneven force. The solutions are to appropriately reduce the tension, use high-quality stretch film, and clean the guide rollers.
What should I do if the goods in the package are loose?

(1) Increase the stretch ratio of the film to achieve tighter packaging; (2) Slow down the hoist speed of the rack to improve film overlap; (3) Check if the pre-stretch mechanism is working properly without slipping; (4) Wrap 2–3 more layers at the bottom of the goods to better secure them.
Why does the turntable not rotate or run slowly after starting?

First, check whether the emergency stop button has been reset and whether the inverter parameters have been incorrectly adjusted. Then check if the chain or belt is loose or slipping, and whether the motor is abnormal. Low-speed force is usually caused by a low inverter current setting or the brake not being released; readjust the parameters to correct it.
How to deal with increased noise after long-term use?

The main reasons are insufficient lubrication or loose parts. (1) Lubricate the turntable bearings, chains, and gears; (2) Tighten loose screws, film holders, and covers; (3) Clean debris under the turntable to avoid friction noise. Regular maintenance can greatly reduce noise.
