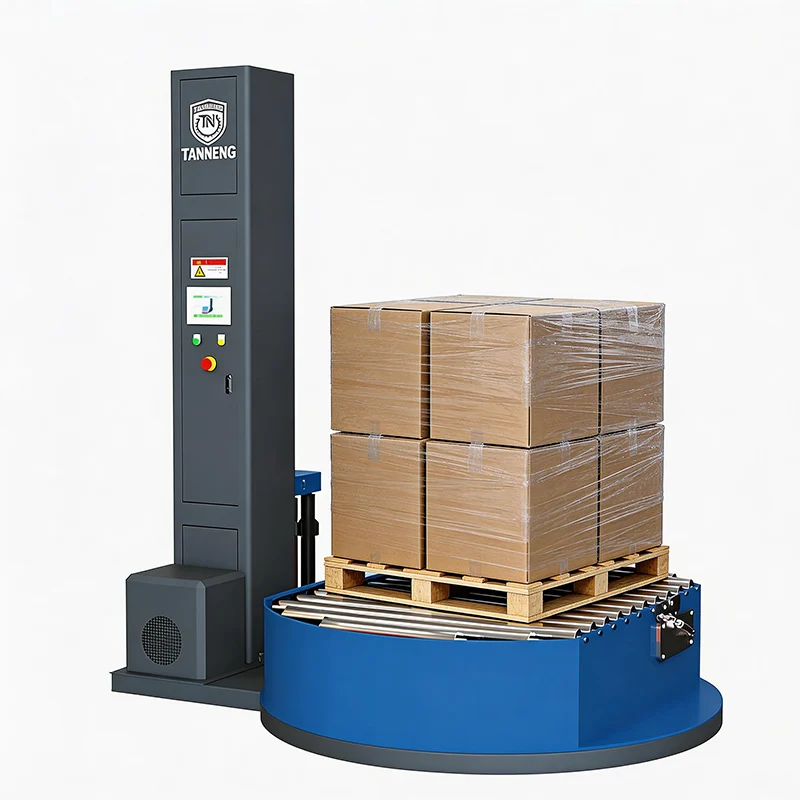

In-Line Wrapping Machine

Product Description:

·Seamless docking of assembly lines, fully automated unmanned packaging

·Automatic film feeding, winding, film cutting, and material discharge, with no manual labor required throughout the entire process

·The batch production of the adapted conveyor line has significantly improved efficiency

·It operates stably without lagging, making it suitable for continuous high-intensity work

·Save manpower, film, and management, with more unified packaging standardization

Inquire Now

WhatsApp

Features:

Nationwide joint guarantee
Worry-free shopping
Lifetime maintenance

Detailed Description

The TANNENG in-line wrapping machine can seamlessly connect to an automated production line, achieving continuous cargo transportation, automatic positioning, film wrapping, and integrated discharging operations without manual intervention, ensuring high efficiency and stability throughout the process. The equipment uses variable frequency speed control and an intelligent control system, allowing free adjustment of the number of wrapping layers, film tension, and wrap tightness. It runs smoothly and ensures secure packaging, effectively improving logistics and warehouse packaging efficiency, and is suitable for the automated packaging needs of large-scale production enterprises in the food, pharmaceutical, daily chemical, electronics, and hardware industries.

Specifications:

1650 In-Line Wrapping Machine – Turntable Diameter 1.65 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

1800 In-Line Wrapping Machine – Turntable Diameter 1.8 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

2000 In-Line Wrapping Machine – Turntable Diameter 2 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

Category	Standard Wrapping Machine
Packing efficiency	20-40 trays/hour
Control system	Siemens
Low Voltage Apparatus	Schneider
Electric machinery	Tai Li / Wan Xin
Pallet weight	Max 2000kg
Frequency converter	Siemens
Photoelectric switch	Banner
Machine size	24801650/1800/20003270mm

FAQ:

Why does stretch film easily break when wrapping?

There are three common reasons: (1) the tension of the stretch film is set too high; (2) the film is thin, brittle, or damaged; (3) the film carriage or roller is stuck, causing uneven force. The solutions are to appropriately reduce the tension, use high-quality stretch film, and clean the guide rollers.
What should I do if the goods in the package are loose?

(1) Increase the stretch ratio of the film to achieve tighter packaging; (2) Slow down the hoist speed of the rack to improve film overlap; (3) Check if the pre-stretch mechanism is working properly without slipping; (4) Wrap 2–3 more layers at the bottom of the goods to better secure them.
Why does the turntable not rotate or run slowly after starting?

First, check whether the emergency stop button has been reset and whether the inverter parameters have been incorrectly adjusted. Then check if the chain or belt is loose or slipping, and whether the motor is abnormal. Low-speed force is usually caused by a low inverter current setting or the brake not being released; readjust the parameters to correct it.
How to deal with increased noise after long-term use?

The main reasons are insufficient lubrication or loose parts. (1) Lubricate the turntable bearings, chains, and gears; (2) Tighten loose screws, film holders, and covers; (3) Clean debris under the turntable to avoid friction noise. Regular maintenance can greatly reduce noise.
