Automatic Film Cut Stretch Wrapper

Product Description:

·Automatic film cutting and breaking, no need for manual film cutting, safer and more efficient

·One-click fully automatic operation, reducing manual intervention and achieving higher efficiency

·The broken film is neat and aesthetically pleasing, enhancing the overall packaging image

Inquire Now

WhatsApp

Features:

Nationwide joint guarantee
Worry-free shopping
Lifetime maintenance

Detailed Description

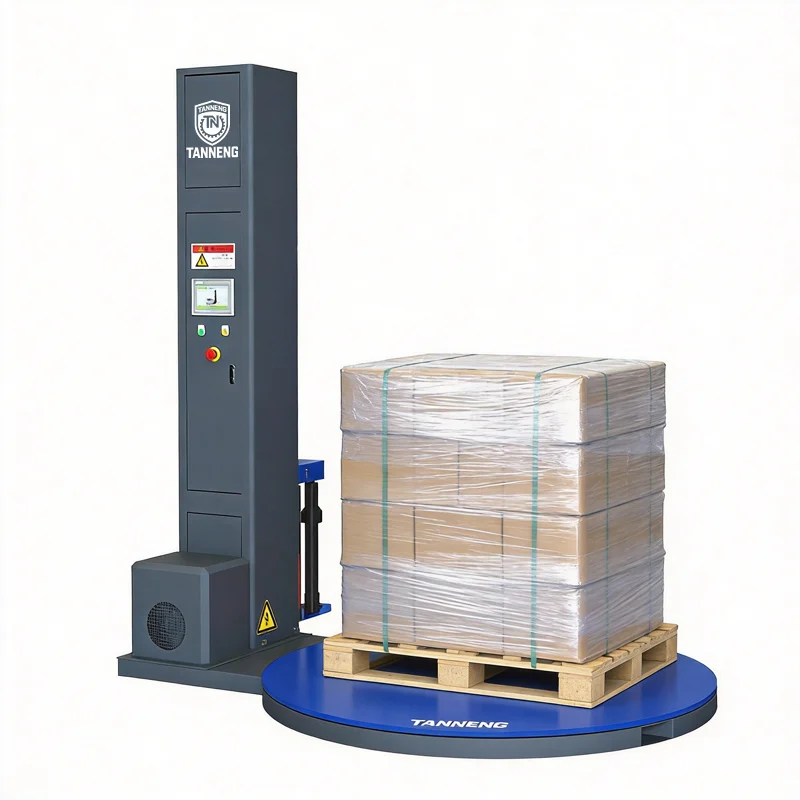

The TANNENG automatic film cut stretch wrapper integrates automatic film wrapping and intelligent film cutting, requiring no manual intervention throughout the process, and can achieve automated cargo wrapping and film cutting operations. The equipment uses a PLC control system with variable frequency speed regulation, paired with photoelectric automatic height measurement and pre-stretch film racks. The number of packaging layers, film tension, and wrapping height can all be flexibly set. It is equipped with a dedicated automatic film cutting mechanism that automatically cuts the film after wrapping, effectively avoiding the complexity and safety risks of manual operation. The machine operates stably, with high packaging efficiency, and has dust-proof, moisture-proof, and pile-stability functions. It is widely applicable for automated pallet cargo packaging in industries such as logistics and warehousing, food, hardware, chemicals, and building materials, significantly saving labor costs and enhancing the standardization and appearance of packaging.

Specifications:

1650 Automatic Film Cut Stretch Wrapper – Turntable Diameter 1.65 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

1800 Automatic Film Cut Stretch Wrapper – Turntable Diameter 1.8 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

2000 Automatic Film Cut Stretch Wrapper – Turntable Diameter 2 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

Category	Standard Wrapping Machine
Packing efficiency	20-40 trays/hour
Control system	Siemens
Low Voltage Apparatus	Schneider
Electric machinery	Tai Li / Wan Xin
Pallet weight	Max 2000kg
Frequency converter	Siemens
Photoelectric switch	Banner
Machine size	24801650/1800/20003270mm

FAQ:

Why does stretch film easily break when wrapping?

There are three common reasons: (1) the tension of the stretch film is set too high; (2) the film is thin, brittle, or damaged; (3) the film carriage or roller is stuck, causing uneven force. The solutions are to appropriately reduce the tension, use high-quality stretch film, and clean the guide rollers.
What should I do if the goods in the package are loose?

(1) Increase the stretch ratio of the film to achieve tighter packaging; (2) Slow down the hoist speed of the rack to improve film overlap; (3) Check if the pre-stretch mechanism is working properly without slipping; (4) Wrap 2–3 more layers at the bottom of the goods to better secure them.
Why does the turntable not rotate or run slowly after starting?

First, check whether the emergency stop button has been reset and whether the inverter parameters have been incorrectly adjusted. Then check if the chain or belt is loose or slipping, and whether the motor is abnormal. Low-speed force is usually caused by a low inverter current setting or the brake not being released; readjust the parameters to correct it.
How to deal with increased noise after long-term use?

The main reasons are insufficient lubrication or loose parts. (1) Lubricate the turntable bearings, chains, and gears; (2) Tighten loose screws, film holders, and covers; (3) Clean debris under the turntable to avoid friction noise. Regular maintenance can greatly reduce noise.
