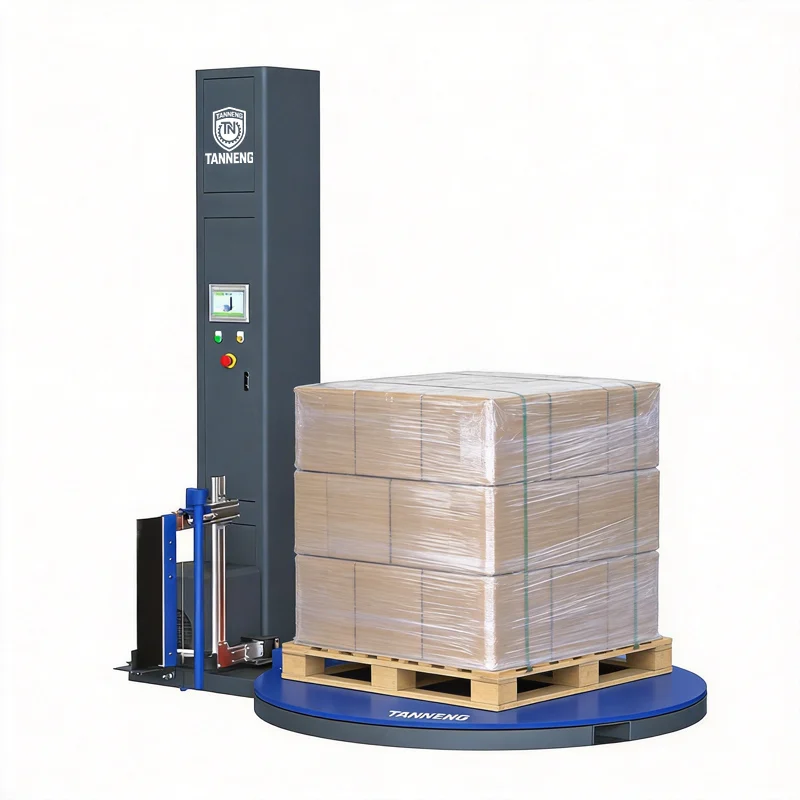

Automatic Film Attach & Cut Stretch Wrapper

Product Description:

·Automatic film feeding + automatic film cutting, no hands required throughout the process

·Farewell to manual film cutting and sticking, with a significant increase in packaging efficiency

·The film head is firmly clamped, ensuring no detachment, loosening, or waste of film

·One-click automatic operation, easy to use for both elderly and novice users

·The packaging is neat and uniform, making the shipment more visually appealing and professional

Features:

Nationwide joint guarantee

Worry-free shopping

Lifetime maintenance

  • Detailed Description

The TANNENG automatic film attach & cut stretch wrapper achieves fully unmanned operation throughout the entire process, from automatic film loading and wrapping to film cutting and sealing, without the need for manual assistance. The equipment is equipped with a PLC intelligent control system and variable frequency speed regulation, combined with a pre-stretch film frame and photoelectric automatic height measurement, allowing flexible setting of the number of wrapping layers, film tension, and wrapping height, ensuring stable and reliable operation. It integrates a dedicated film-loading and cutting mechanism, which operates smoothly and cuts the film neatly, effectively improving packaging efficiency and appearance. The entire machine is equipped with dustproof, moisture-proof, and anti-toppling features, making it suitable for large-scale pallet packaging in industries such as logistics warehousing, food, hardware, and chemicals. It truly realizes automated and standardized operation, saving labor and reducing packaging costs.

Specifications:

1650 Automatic Film Attach & Cut Stretch Wrapper – Turntable Diameter 1.65 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)
1800 Automatic Film Attach & Cut Stretch Wrapper – Turntable Diameter 1.8 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)
2000 Automatic Film Attach & Cut Stretch Wrapper – Turntable Diameter 2 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)
CategoryStandard Wrapping Machine
Packing efficiency20-40 trays/hour
Control systemSiemens
Low Voltage ApparatusSchneider
Electric machineryTai Li / Wan Xin
Pallet weightMax 2000kg
Frequency converterSiemens
Photoelectric switchBanner
Machine size2480*1650/1800/2000*3270mm

FAQ:

  • Why does stretch film easily break when wrapping?

    There are three common reasons: (1) the tension of the stretch film is set too high; (2) the film is thin, brittle, or damaged; (3) the film carriage or roller is stuck, causing uneven force. The solutions are to appropriately reduce the tension, use high-quality stretch film, and clean the guide rollers.

  • What should I do if the goods in the package are loose?

    (1) Increase the stretch ratio of the film to achieve tighter packaging; (2) Slow down the hoist speed of the rack to improve film overlap; (3) Check if the pre-stretch mechanism is working properly without slipping; (4) Wrap 2–3 more layers at the bottom of the goods to better secure them.

  • Why does the turntable not rotate or run slowly after starting?

    First, check whether the emergency stop button has been reset and whether the inverter parameters have been incorrectly adjusted. Then check if the chain or belt is loose or slipping, and whether the motor is abnormal. Low-speed force is usually caused by a low inverter current setting or the brake not being released; readjust the parameters to correct it.

  • How to deal with increased noise after long-term use?

    The main reasons are insufficient lubrication or loose parts. (1) Lubricate the turntable bearings, chains, and gears; (2) Tighten loose screws, film holders, and covers; (3) Clean debris under the turntable to avoid friction noise. Regular maintenance can greatly reduce noise.
