Standard Wrapping Machine

Product Description:

·Intelligent pre-stretching, stretch ratio 1:4.5

·Fully automatic packaging, efficiency 5 times higher than manual, 1 person equals 5 people

·Stable protection: dustproof / moisture-proof / anti-shifting, greatly reduces transportation loss

·PLC intelligent control, one-button operation, simple and stable

·Thickened body, variable frequency slow start and stop, durable and safe, not easy to topple goods

Inquire Now

WhatsApp

Features:

Nationwide joint guarantee
Worry-free shopping
Lifetime maintenance

Detailed Description

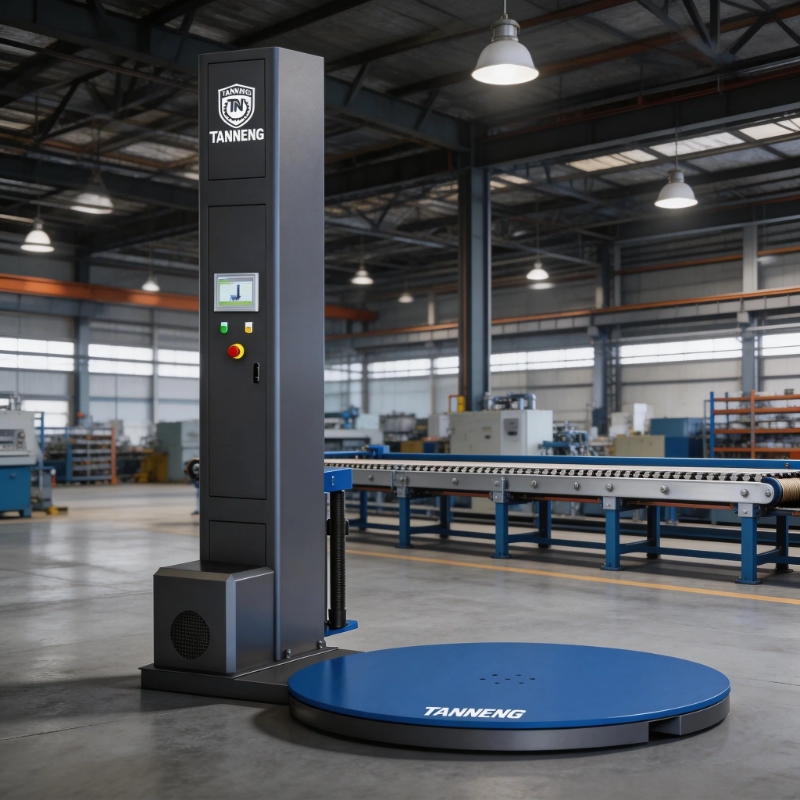

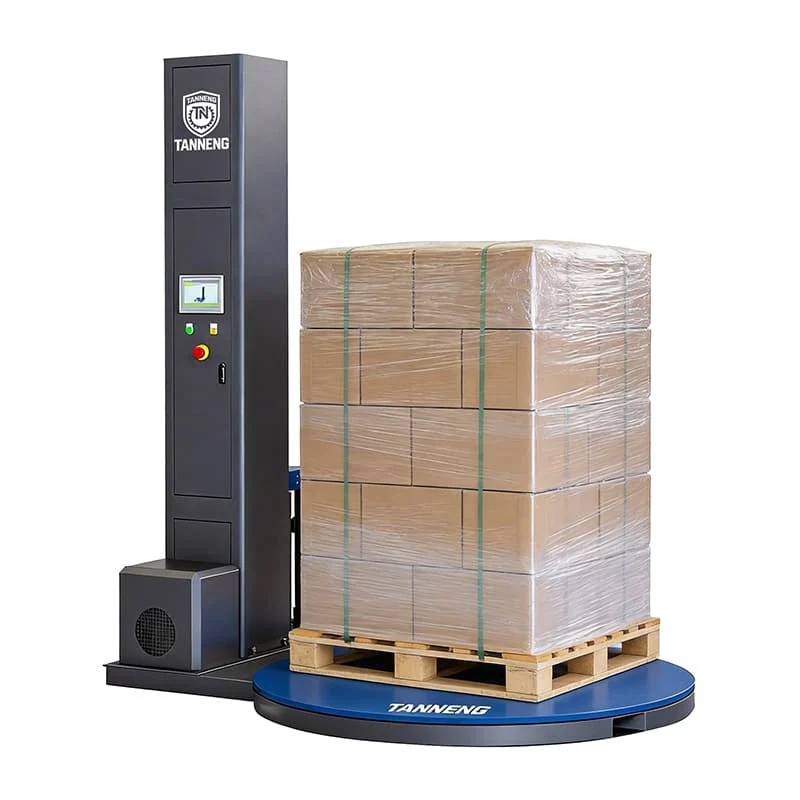

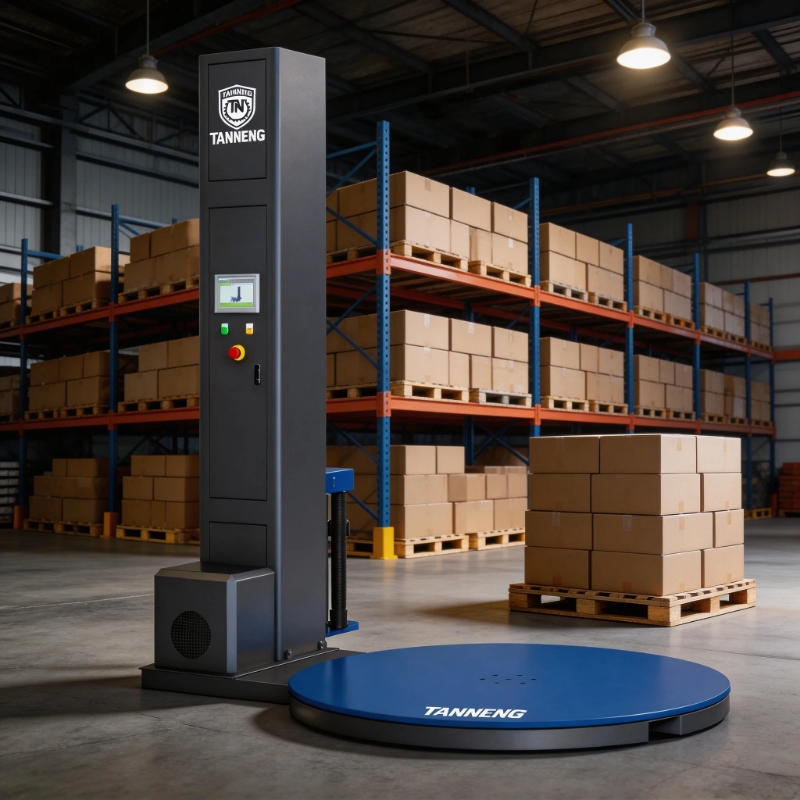

The TANNENG standard wrapping machine uses a turntable rotation combined with a film carriage lifting structure. It uses stretch film as the packaging material, and through the pre-stretch mechanism, it evenly wraps pallet goods. The number of wrapping layers, tightness, and wrapping height can be freely set, achieving effects such as dust prevention, moisture protection, stabilization of stacked goods, and reduction of transportation losses. The equipment is equipped with PLC intelligent control and variable frequency speed regulation, ensuring stable operation and easy handling. It is suitable for automated wrapping of pallet goods in various industries including hardware, electronics, food, building materials, and logistics warehousing, effectively improving packaging efficiency and reducing labor costs.

Specifications:

1650 Standard Wrapping Machine – Turntable Diameter 1.65 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

1800 Standard Wrapping Machine – Turntable Diameter 1.8 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

2000 Standard Wrapping Machine – Turntable Diameter 2 meters – Wrapping Height 2/2.5/2.8 meters – Turntable Load Capacity 2 tons (Customizable)

Category	Standard Wrapping Machine
Packing efficiency	20-40 trays/hour
Control system	Siemens
Low Voltage Apparatus	Schneider
Electric machinery	Tai Li / Wan Xin
Pallet weight	Max 2000kg
Frequency converter	Siemens
Photoelectric switch	Banner
Machine size	24801650/1800/20003270mm

FAQ:

Why does stretch film easily break when wrapping?

There are three common reasons: (1) the tension of the stretch film is set too high; (2) the film is thin, brittle, or damaged; (3) the film carriage or roller is stuck, causing uneven force. The solutions are to appropriately reduce the tension, use high-quality stretch film, and clean the guide rollers.
What should I do if the goods in the package are loose?

(1) Increase the stretch ratio of the film to achieve tighter packaging; (2) Slow down the hoist speed of the rack to improve film overlap; (3) Check if the pre-stretch mechanism is working properly without slipping; (4) Wrap 2–3 more layers at the bottom of the goods to better secure them.
Why does the turntable not rotate or run slowly after starting?

First, check whether the emergency stop button has been reset and whether the inverter parameters have been incorrectly adjusted. Then check if the chain or belt is loose or slipping, and whether the motor is abnormal. Low-speed force is usually caused by a low inverter current setting or the brake not being released; readjust the parameters to correct it.
How to deal with increased noise after long-term use?

The main reasons are insufficient lubrication or loose parts. (1) Lubricate the turntable bearings, chains, and gears; (2) Tighten loose screws, film holders, and covers; (3) Clean debris under the turntable to avoid friction noise. Regular maintenance can greatly reduce noise.
